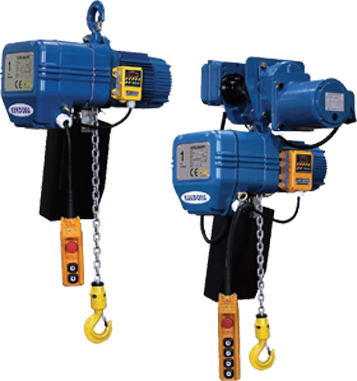

Chain Hoist KD-1 Type (0.49-2 ton)

Category Tag Brand: KD

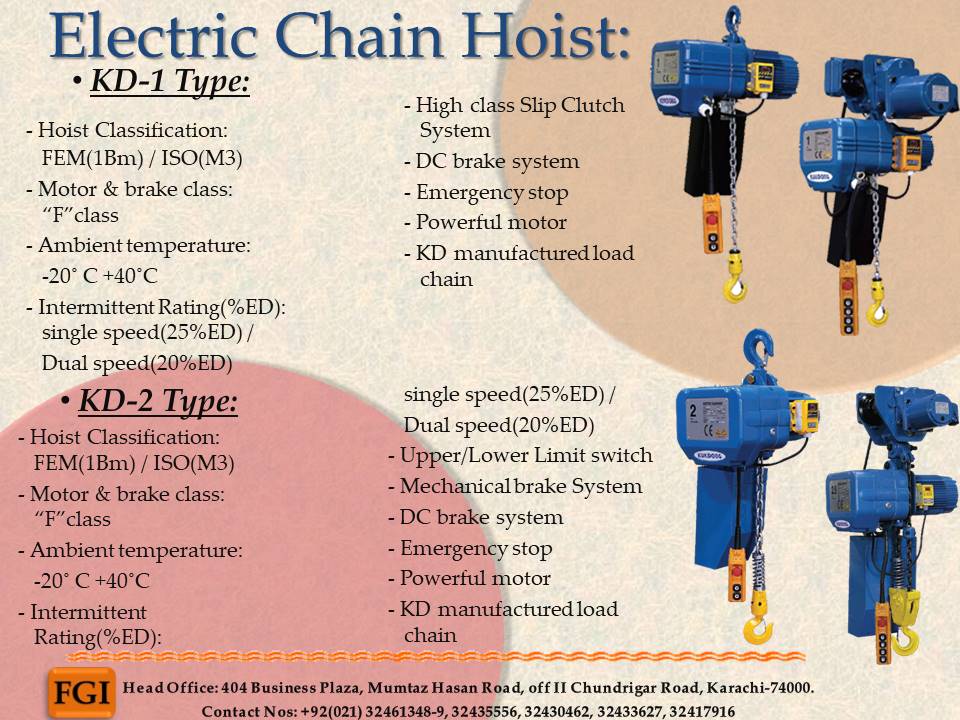

  • KD-1 Type:

– Hoist Classification:      FEM(1Bm) / ISO(M3)

– Motor & brake class:      “F”class

– Ambient temperature:

-20˚ C +40˚C

– Intermittent Rating(%ED):      single speed(25%ED) /

Dual speed(20%ED)

– High class Slip Clutch      System

– DC brake system

– Emergency stop

– Powerful motor

– KD manufactured load      chain

Description

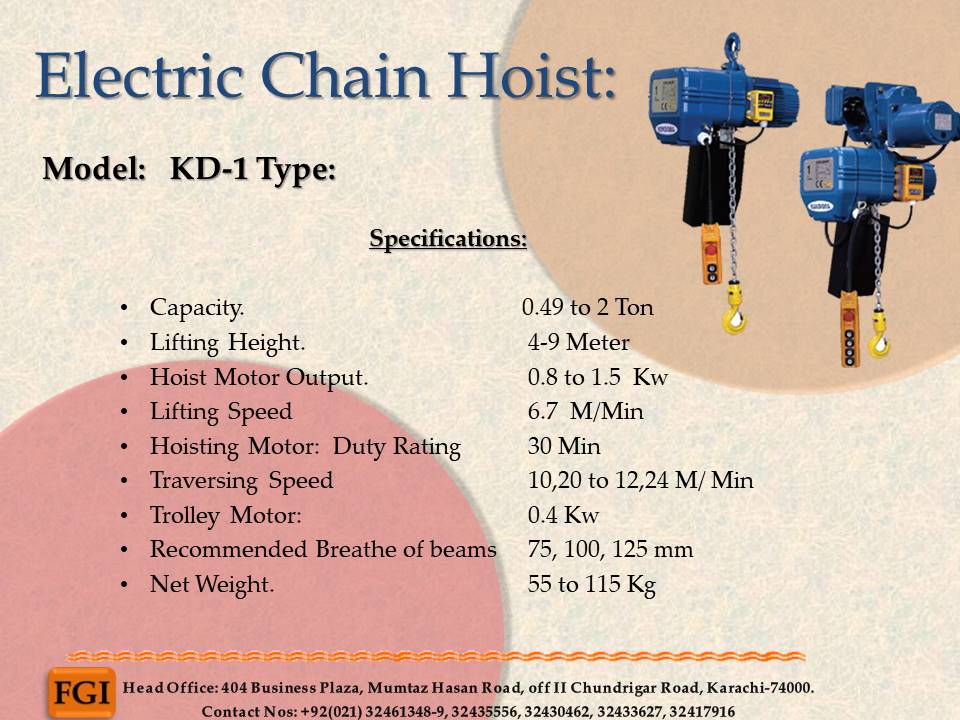

Model:   KD-1 Type:

Specifications:

  • Capacity. 0.49 to 2 Ton
  • Lifting Height. 4-9 Meter
  • Hoist Motor Output. 0.8 to 1.5 Kw
  • Lifting Speed 6.7  M/Min
  • Hoisting Motor: Duty Rating    30 Min
  • Traversing Speed 10,20 to 12,24 M/ Min
  • Trolley Motor:    0.4 Kw
  • Recommended Breathe of beams  75, 100, 125 mm
  • Net Weight. 55 to 115 Kg
