Description
BR J-5 Series Main Specification:
| Sales Model | Unit | BR13J-5 | BR15J-5 | BR18J-5 | BR14JW-5 | BR16JW-5 |
| Rated Load Capacity | kg | 1250 | 1500 | 1800 | 1400 | 1600 |
| Load Center | mm | 500 | 600 | |||
| Max. fork height with STD Mast | mm | 3300 | ||||
| Length without forks | mm | 1700 | 1800 | 1950 | 1695 | 1795 |
| Width | mm | 1070 | ||||
| Mast lowered height | mm | 2135 | ||||
| Mast extended height | mm | 4240 | ||||
| Overhead guard height | mm | 2170 | ||||
| Outside turning radius | mm | 1585 | 1685 | 1835 | 1585 | 1685 |
| Travel sped (loaded/unloaded) | km/h | 12.0/12.0 | ||||
| Lift speed (loaded/unloaded) | mm/s | 430/500 | 400/500 | 340/500 | 420/500 | 390/500 |
| Lowering (loaded/unloaded) | mm/s | 500/500 | ||||
| Max. grade ability (loaded) | % | 19 | ||||
Product Concepts:

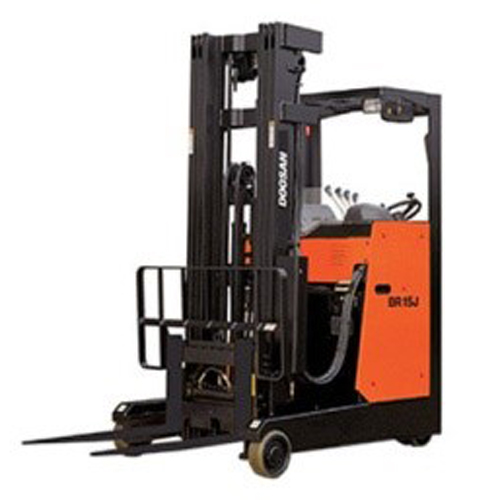

The Doosan -5 reach truck continues to be a reliable old-school-style warehouse machine. DOOSAN’S goal is to make your material handling operation both efficient and profitable. The durability and reliability of these reach trucks will aid in minimizing your truck downtime and total cost of ownership.
Our ergonomically designed and spacious operator compartment combined with a variety of operational enhancements will facilitate ease of operation and help boost output in any application. An anti-slip soft rubber floor mat, large accelerator, and brake pedals, ample foot and legroom, convenient side deck mount hydraulic levers, and our open view instrument panel all work together to provide operating ease and assure a productive work cycle.
