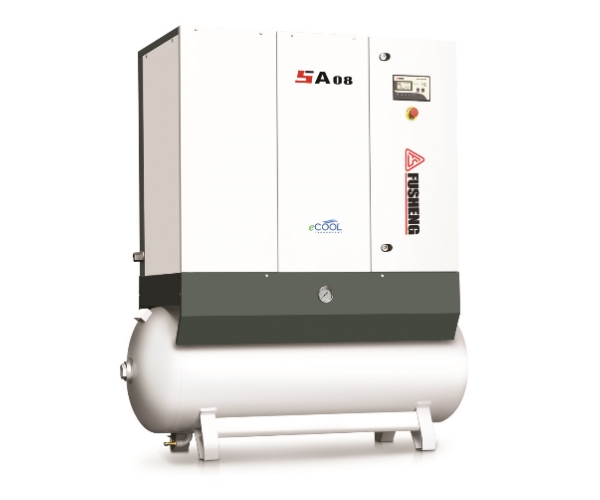

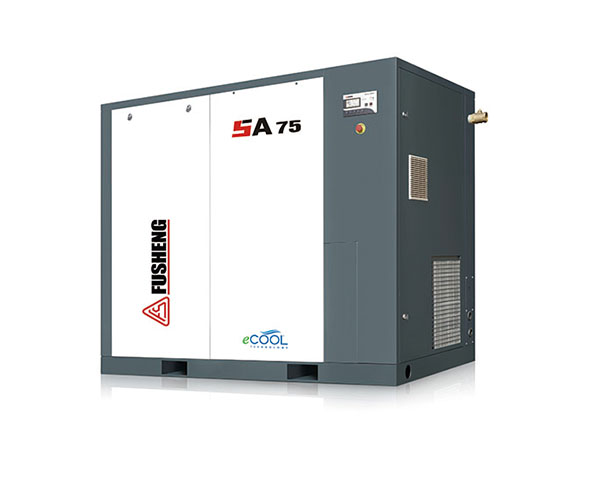

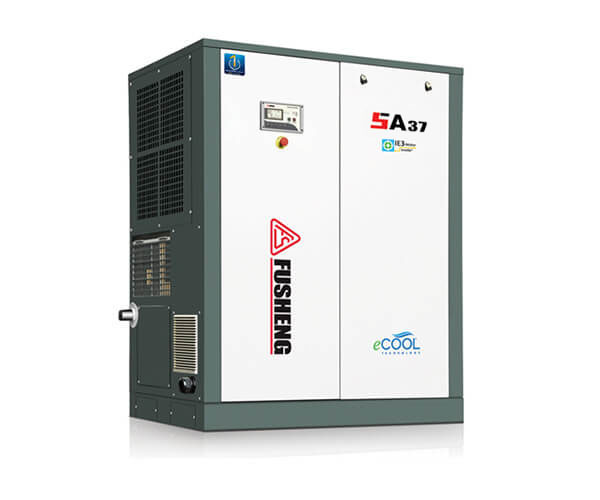

Rotatory Screw air Compressor

Categories , Tag Brand: Fusheng

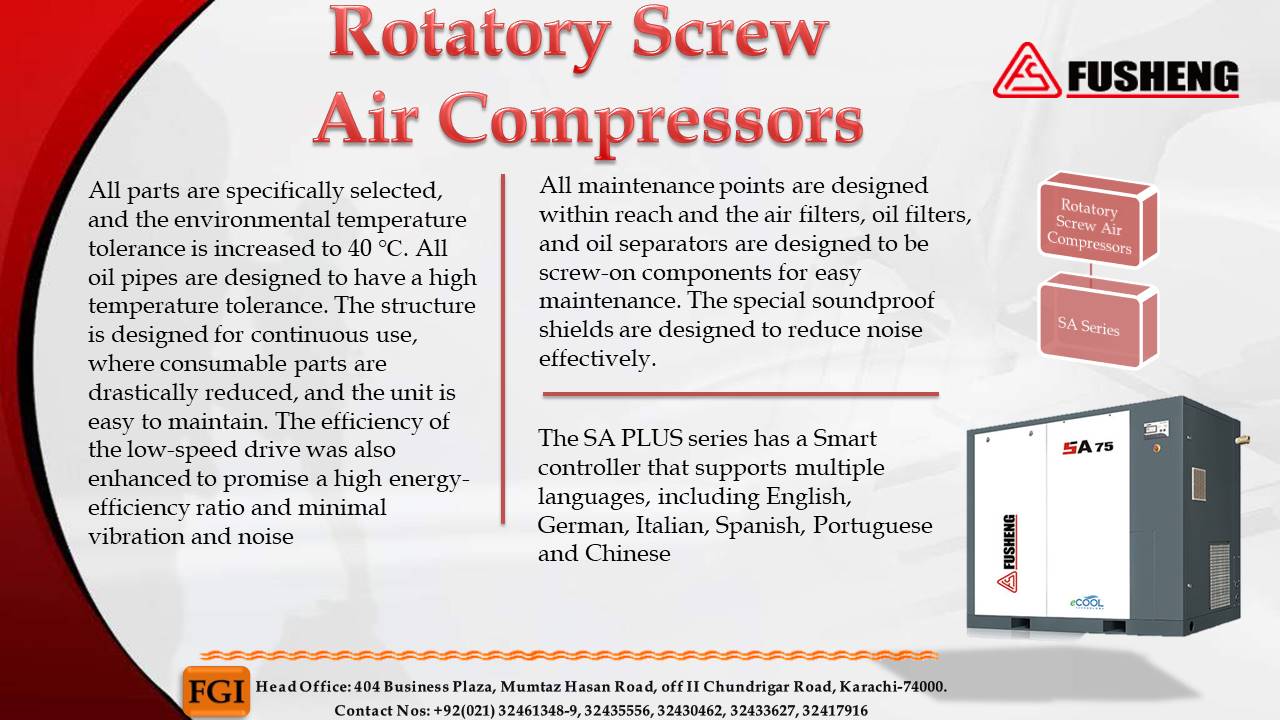

All parts are specifically selected, and the environmental temperature tolerance is increased to 40 ℃. All oil pipes are designed to have a high temperature tolerance. The structure is designed for continuous use, where consumable parts are drastically reduced, and the unit is easy to maintain. The efficiency of the low-speed drive was also enhanced to promise a high energy-efficiency ratio and minimal vibration and noise

All maintenance points are designed within reach and the air filters, oil filters, and oil separators are designed to be screw-on components for easy maintenance. The special soundproof shields are designed to reduce noise effectively.

The SA PLUS series has a Smart controller that supports multiple languages, including English, German, Italian, Spanish, Portuguese and Chinese

About Manufacturer

Description

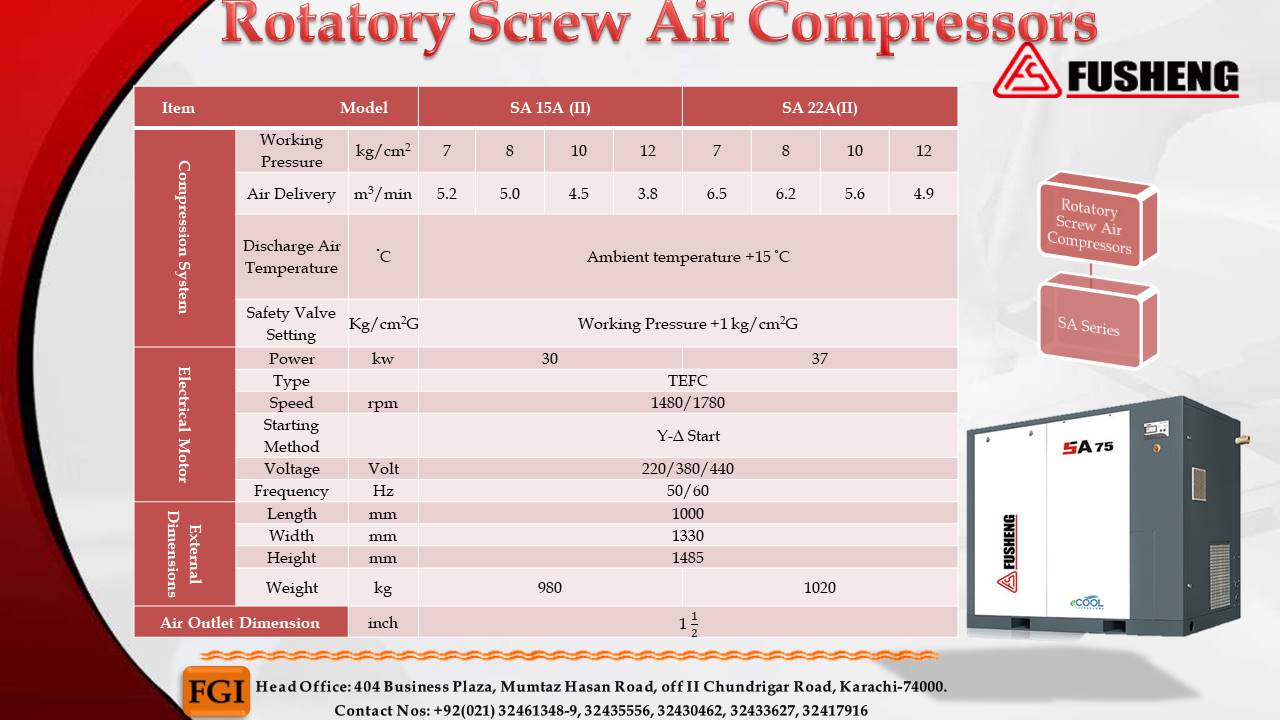

Item                                    Model SA 15A (II) SA 22A(II)
Compression System Working Pressure kg/cm2

7

8

10

12

7

8

10

12
Air Delivery m3/min

2.5

2.3

2.0

17

3.7

3.5

3.1

2.7
Discharge Air Temperature ˚C

Ambient temperature +15 ˚C
Safety Valve Setting Kg/cm2G

Working Pressure +1 kg/cm2G
Electrical Motor Power kw

15

22
Type

TEFC
Speed rpm

1480/1780
Starting Method

Y-Δ Start
Voltage Volt

220/380/440
Frequency Hz

50/60
External Dimensions Length mm

850
Width mm

1130
Height mm

1300
Weight kg 560 620
Air Outlet Dimension inch 1
